Lead zirconate titanate PZT

Lead zirconate titanate
Name: piezoelectric ceramic transducer
Abbreviate:PZT
Features: It has positive piezoelectric effect and negative piezoelectric effect.

Purity: ≥99.5wt%
Particle size:1-3um

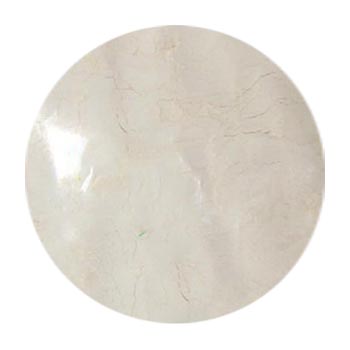

Appearance:beige powder
Specific surface area (SSA):0.915m2/g
Loss on drying: 0.02%

PZT piezoelectric ceramics (lead zirconate titanate): where P is the abbreviation of lead element Pb, Z is the abbreviation of zirconium element Zr and T is the abbreviation of titanium element Ti. PZT is a solid solution of PbZrO3 _ 3 and PbTi _ 03 with perovskite structure. PZT piezoelectric ceramics are polycrystals sintered by lead dioxide, lead zirconate and lead titanate at 1200℃. It has positive piezoelectric effect and negative piezoelectric effect.

As a basic dielectric raw material, lead zirconate titanate is widely used in the fields of precision electronic ceramics such as varistor, capacitor and PTC. One of the basic materials of PZT-11 PZT-5 PZT-8, The granularity can be adjusted according to customers.
